Bag Filtration

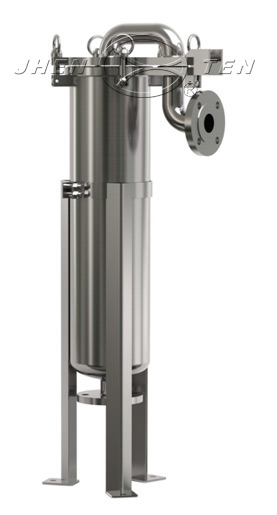

Top Entry Bag Filter Housing
Model: JTGDD
Brand: JHENTEN
Single Bag Filter With
The Most Reasonable Structure
JTGDD Top Entry Bag Filter Housing for some coarse filtration and pre filtering process
Detail Description
The side entry into, again from the top into the filter bag design, automatic pressure, does not produce turbulence, reducing the loss of pressure, effective protection of the bag
The top cover is fully pressed and sealed, and the sealing effect is better.
Stabilizer blade, the installation size can be adjusted according to the requirements of the scene
Surface Finish
Finish Type | Mechanical polishing,Electroplate polishing, Sand blasting, pickling |
polishing precision | Inner surface Ra≤0.6μm , Outside surface Ra≤0.8μm. |
Basket 0.6μm |
Operating Conditions
Max Operating pressure | 0.6MPa、1.0MPa |
Max Operating Temp. | 150℃ |
Material
Shell | 304, 316L, SAF2507, Carbon |
Eyebolt | 304 |
Stabilizer blade | 304 |
O-ring | EPDM, PTFE, Viton, Silicone |
Connection
Shell connection | Flange |
In-outlet | Flange, Quick-open, Screwthread |
Pressure gauge (optional) | M14×1.5 Internal Screw thread |
Vent valve (optional) | 1/4” Internal Screw thread |
Dimension Parameters | Cover | |
1# | 2# | |
Total height | 790 | 1110 |
The distance from inlet to center | 275 | |
Diameter | Φ204 | Φ204 |
The height from inlet to ground | 620 | 940 |
The height from outlet to ground | 200 | |
In-outlet dimension | 1.5”or 2” | |
Stabilizer blade | 550 | 700 |
Max flow, m3/h | 6 | 12 |
The above-mentioned data is the standard, it can customize according tocustomer's requirements.
Selection Table
［Qty. of Bag Filter］ | ［Model of Bag Filter］ | ［Shell Material］ | ［In-outlet connection］ | ［O-ring］ | |
JTGDD | 1P | 2S | 4 | F | E |
1P=1pc | 1S=1# Bag：Φ180 x 430 | 4= 304 | F= Flange | E=EPDM | |
2S=2# Bag：Φ180x 810 | 6= 316L | K= Quick-open | P=PTFE | ||
3S=3# Bag：Φ105 x 230 | L= Screw thread | V=Viton | |||
4S=4# Bag：Φ105x 380 | S=Silicone |
