Evaporative concentrator
Single purpose external cycling vacuum conentractor
Model: DJT
Brand: JHENTEN
Detail Description

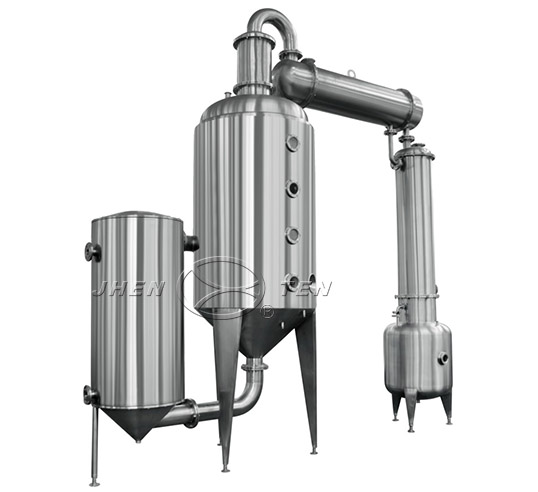

DJTN single effect external circulation vacuum recovery concentrator

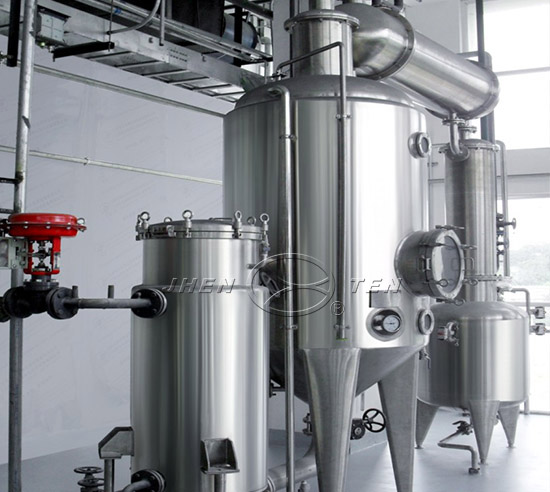

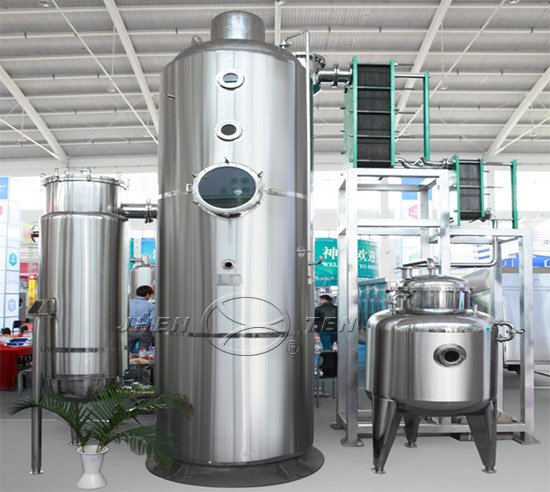

DJT single-effect external circulation plate type condensing vacuum concentrator
DJTS single effect external circulation vacuum cream reclaim concentrator
Equipment characteristics
The single-effect external circulation vacuum concentrator is composed of heater, evaporator, defoamer, condenser, cooler and liquid receiving tank. The parts that contact materials are all made of stainless steel. The equipment is applicable to evaporate and concentrate of liquid materials in pharmacy, food, chemical industry and light industry etc. The concentrating time is short and the evaporating speed is high, which can better protect the heat sensitive materials from being damaged.
Single-effect evaporators of this series have three forms
I. DJT single-effect external circulation vacuum concentrator is the ordinary type, which is used for evaporation of water solution.
II. DJTN single-effect external circulation vacuum recovery concentrator is the alcohol recovery type, which is used for evaporation of alcohol solution. It has larger cooling area to ensure the alcohol recovery. Its recovery strength reaches 70~85°, the alcohol consumption rate is less than 5% and the alcohol temperature after the recovery is less than 40℃.
III. DJTS single-effect external circulation vacuum ointment collection concentrator is used for single-effect evaporation and thick ointment collection. After the normal single-effect evaporation, the valves connecting the spraying tube and circulating tube in the heating chamber and evaporating chamber will be closed. The liquid materials will fully enter the evaporating chamber and through the jacket heating in the evaporating chamber, normal pressure type or pressure relief type concentration will be carried out. The concentration specific gravity of materials will be increased to 1.35-1.45.
Technical parameters
| Model | DJTN-500 | DJTN-1000 | DJTN-1500 | DJTN-2000 |
| Evapotaring capacity（kg/h） | 500 | 1000 | 1500 | 2000 |
| Recyccled aicohol density（%） | 70~85 | |||
| Steam pressure（MPa） | 0.25 | |||
| Vacuum degree（MPa） | 0.02~0.08 | |||
| Heating/Condensation area（㎡） | 10/30 | 20/60 | 30/90 | 40/120 |
| Steam cost（Kg/h） | 350 | 700 | 1050 | 1550 |
| Water cost(T/h) | 25 | 45 | 70 | 90 |
| Heating steam inlet（m3/h） | 110 | 230 | 340 | 530 |
| Equipment weight（kg） | 1450 | 2000 | 3000 | 3700 |
